API_​CurtainWallModelViewOptions

Represents the model view options of Curtain Walls made with Curtain Wall Tool. The entire structure is ARCHICAD only.

    typedef struct {
        char     cwFrameDetailLevel;
        char     cwPanelDetailLevel;
        char     cwJunctionDetailLevel;
        char     cwAccessoryDetailLevel;
    } API_CurtainWallModelViewOptions;



Members

cwFrameDetailLevel
Detail level of Curtain Wall Frames
Possible values: API_CurtainWallCompShow_Full, API_CurtainWallCompShow_Simplified, API_CurtainWallCompShow_Schematic, API_CurtainWallCompShow_Linear, API_CurtainWallCompShow_None.
cwPanelDetailLevel
Detail level of Curtain Wall Panels
Possible values: API_CurtainWallCompShow_Full, API_CurtainWallCompShow_Simplified, API_CurtainWallCompShow_Schematic, API_CurtainWallCompShow_None.
cwJunctionDetailLevel
Detail level of Curtain Wall Junctions
Possible values: API_CurtainWallCompShow_Full, API_CurtainWallCompShow_Simplified, API_CurtainWallCompShow_Schematic, API_CurtainWallCompShow_None.
cwAccessoryDetailLevel
Detail level of Curtain Wall Accessories
Possible values: API_CurtainWallCompShow_Full, API_CurtainWallCompShow_Simplified, API_CurtainWallCompShow_Schematic, API_CurtainWallCompShow_None.



Remarks

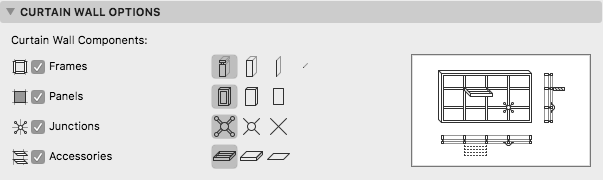

These settings correspond to the relevant items in the Document/Model View/Model View Options dialog/Curtain Wall Options page.

Curtain Wall MVO



Requirements

Version: API 22 or later
Header: APIdefs_Environment.h



See Also

API_ModelViewOptions,
APIEnv_GetViewOptionsID, APIEnv_ChangeViewOptionsID,
API_NavigatorView,
